CLEARFIELD 576 FSC CABINETS
FieldSmart Fiber Scalability Center Cabinets
INCLUDES Splitters, Splice Enclosures, & Vaults
*Brand New*
REDUCING LEADTIMES
COST SAVINGS
LIFETIME WARRANTY
SUSTAINABLE SOLUTIONS

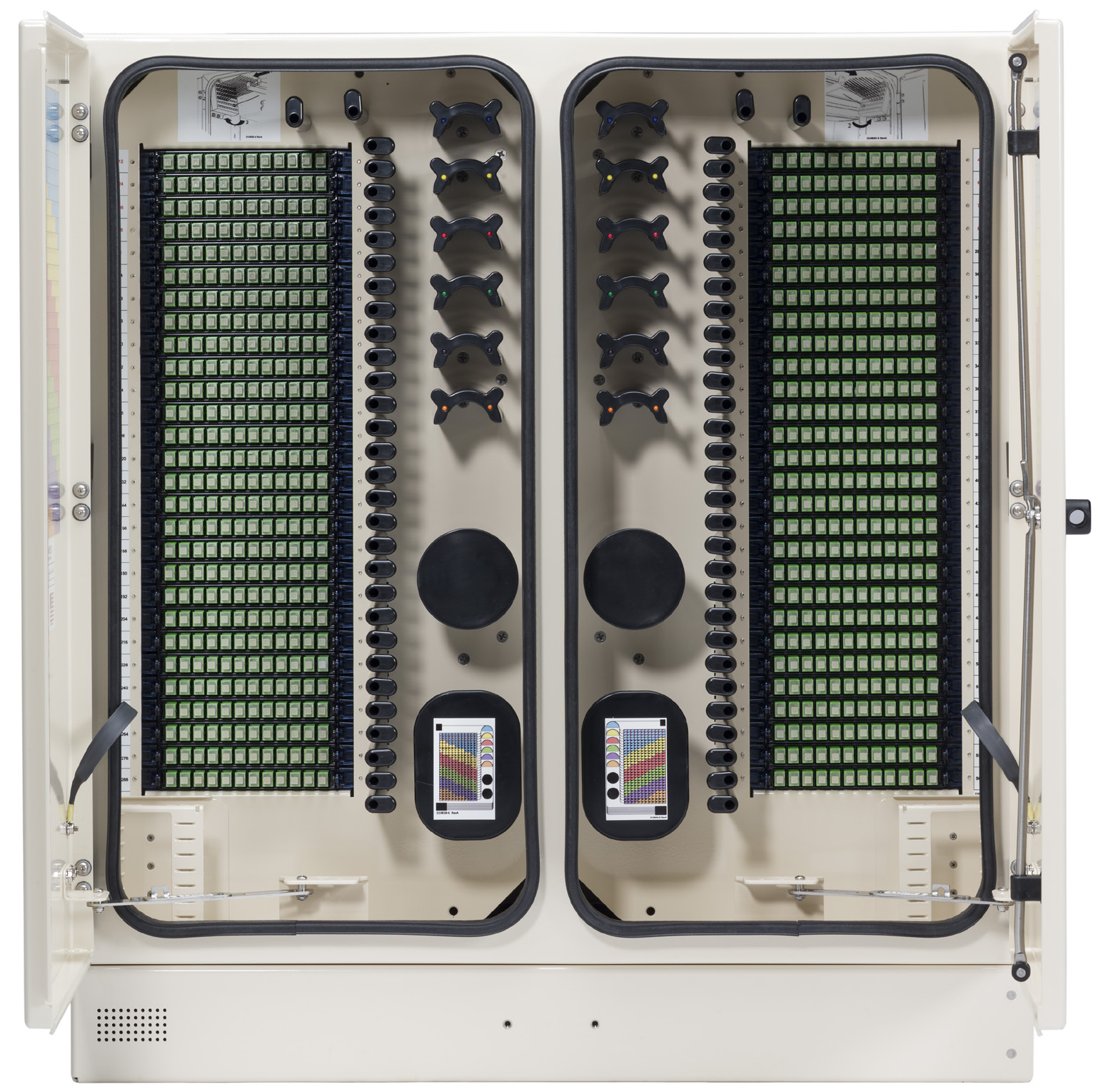

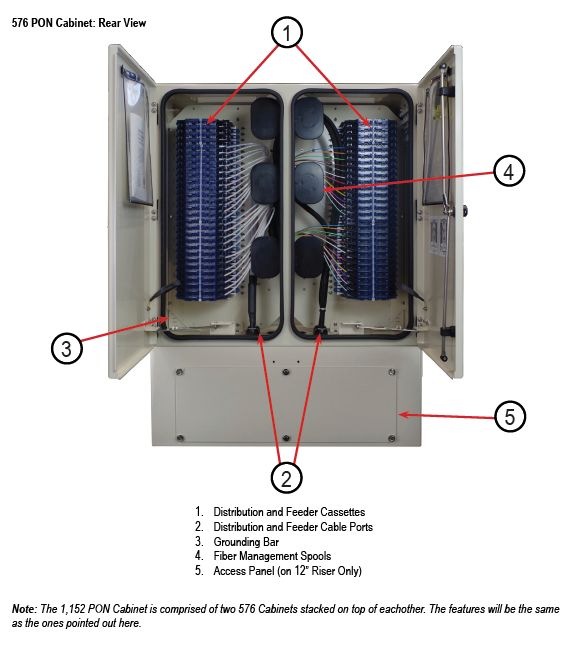

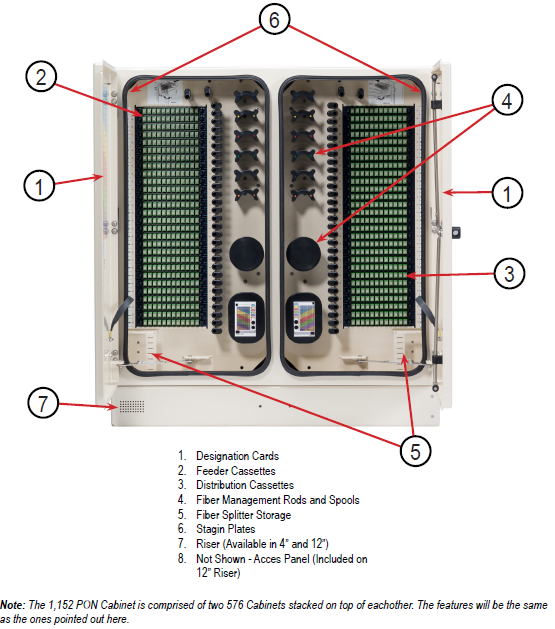

CLEARFIELD 576 FSC CABINETS
FieldSmart® Fiber Scalability Center (FSC) cabinets, developed by Clearfield, are utilized by a diverse range of telecommunications and utility providers to manage and scale fiber networks. These cabinets are integral in facilitating fiber-to-the-home (FTTH) deployments, offering modular and scalable solutions for fiber distribution.
The FieldSmart FSC PON is the complete solution for managing 12 to 1,152 port distribution fibers for an outside plant FTTx PON application. Through the incremental design of the Clearview® Cassette, user capacity can be scaled from as few as 12 ports to the maximum configuration of the cabinet, allowing the service provider to align the investment in capital equipment to the turn-up of revenue-generating circuits.
Technical Specifications
| FieldSmart FSC PON Cabinets | 288 Port | 432 Port | 576 Port | 1,152 Port |
| Dimensions (without riser) | 32” H x 16.78” W x 16.9” D |
36.67” H x 21.17” W x 16.9” D |
32” H x 33” W x 16.9” D |
64” H x 33” W x 16.9” D |
| Weight | 54 lbs | 66 lbs | 86 lbs | 172 lbs |
| Port Density | 288 | 432 | 576 | 1152 |
| Feeder/Express Ports | 48 | 48 | 96 | 192 |
| Cable Entrances | 6 | 6 | 12 | 12 |
| Mounting Options | Vault mount; pole mount; pad mount |
Vault mount; pole mount; pad mount |
Vault mount; pad mount |
Vault mount; pad mount |
| Standing Riser Base | 4” (6 lbs) | 4” (6 lbs) | 4” (8 lbs) | 4” (8 lbs) |
| Optional Riser Base | 12” (12 lbs) | 12” (16 lbs) | 12” (20 lbs) | 12” (20 lbs) |
| Splitter Slots | 9 | 14 | 18 | 36 |
| Cassette Types Supported | Clearview® Blue and Clearview Classic | |||
| Connector Types | SC/UPC, SC/APC, LC/UPC, LC/APC | |||
| Cable Types | Indoor/Outdoor, Outdoor (Riser/Non-Rated), Outdoor Armored (Riser/Non-Rated) | |||
| Splice Capacity | 12 splices in each Clearview Cassette | |||
| Ground Locate Box | Yes – Optional | |||
| Material | 0.125 aluminum with almond powder coating | |||
Features & Benefits
Integrity
• 100% tested GR-326 compliant terminations
• GR-20, GR-409, GR-487, GR-1221 and GR-1209 compliant
• All cabinets are constructed with .125 aluminum
• All cabinet parts are powder coated for additional protection
• 300 series stainless steel fasteners used on all cabinets
Protection
• 12-fiber Clearview Cassette houses each 12-fiber increment of patch only or patch & splice, protecting fiber from the environment and human factors
• Rugged cable clamps protect against twisting/ pistoning of the critical breakout or buffer tube access point of the OSP cable
• Patch only buffer tubes fully protected with ruggedized bend limiting tubing
• Snakeskin sleeving provides additional buffer tube slack storage protection and manageability for patch & splice configurations
• Small splitter package for minimal space requirements, ruggedized jacketing on input/output legs and bend insensitive fiber
• Ground/locate box optional
Access
• Clearview Cassette allows for quick visual troubleshooting without opening cassette
• Front access to pre-terminated assemblies with Clearview removable adapter plate
• Easy two captive fasteners for quick removal of individual cassettes for trouble shooting, splicing, or hot swappability
• Front and rear access
Investment
• All fiber deployed in increments of 12, providing the users to the ability to scale from 12 ports to full capacity aligning capital investment with network layout or subscriber revenue
• User defined DF to AF ratios for cross-connect environments for ultimate flexibility
• Express ports allow for extensions or parallel networks through the cabinet
• Patch & splice configurations eliminate costs associated with jacketed IFC cabling, hand-holes, and splice cases
Multiple Parts Available & Ready to Ship with Lifetime Warranty
See Part List Below for a Sampling of Our Inventory
Don’t see what you’re looking for? Our Inventory is always changing, please contact us for current stock.
| Manufacturer | Description | QTY |
| Clearfield | CLEARFIELD 576 FSC CABINETS: FieldSmart Fiber Scalability Center Cabinets INCLUDES Splitters, Splice Enclosures, & Vaults |
Contact for Current Inventory |
