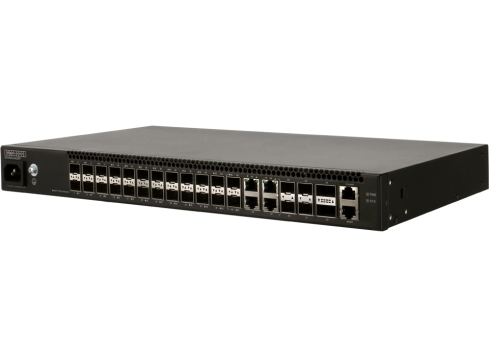

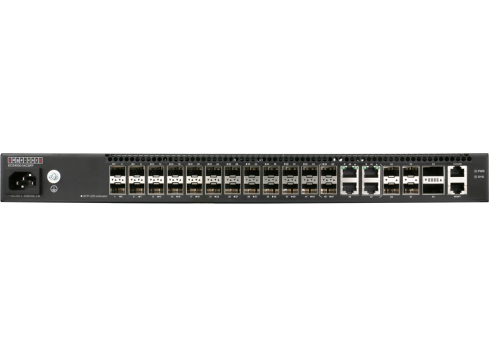

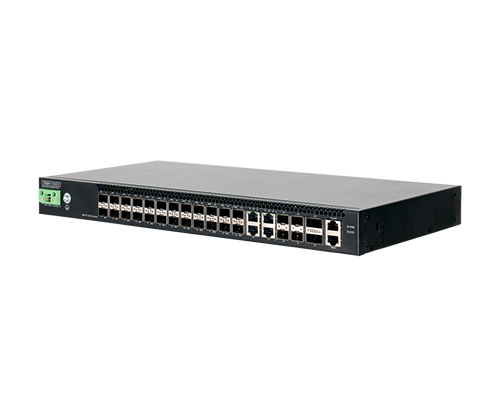

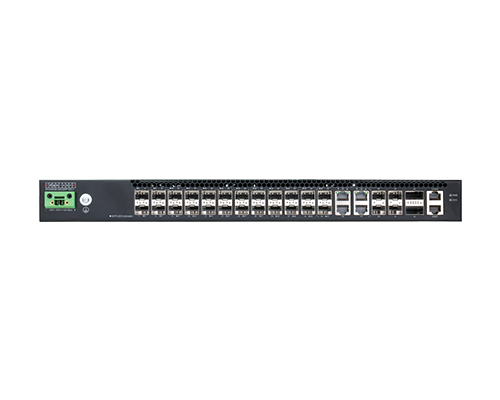

Edgecore ECS4530-54CSFP-DC-I
The Edgecore ECS4530 Series switch is a high port density Gigabit Ethernet fiber switch with four 10G uplink ports. By inserting a CSFP transceiver with two bidirectional fiber ports into a CSFP port, Internet Service Providers (ISPs) and Multiple System Operators (MSOs) can support twice as many subscribers per port and reduce the space and heating or cooling costs needed for deploying two 24 port switches and larger 48-port switches. The switch is ideal for ISPs/MSOs that want to provide home users with FTTH triple-play services with up to a Gigabit of bandwidth. It is also ideal for ISPs/MSOs that want to aggregate FE/GE access switches with Gigabit fiber uplinks. The ECS4530 Series switch is packed with features that bring high availability, comprehensive security, robust multicast control, and advance QoS to the network edge, while maintaining simple management. The switch also supports the most advanced IPv6 management, IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment.
Edgecore ECS4530 Series Key Features and Benefits
Performance and Scalability
The Edgecore ECS4530 Series is a high-performance Gigabit Ethernet Layer 2+ managed switch with 256Gbps switching capacity. The switch delivers wire-speed switching performance on all Gigabit ports, taking full advantage of existing high-performance Gigabit fiber IAD, CPEs, and access switches with Gigabit fiber uplinks etc, significantly improving the responsiveness of applications and file transfer times. There are 24 CSFP ports, and by inserting a CSFP transceiver that supports two BIDI fiber ports, each port can connect to two CPE/IAD devices, so the total number of physical ports is 48. The four built-in 10G SFP+ ports provide uplink flexibility, allowing the insertion of fiber or copper, Gigabit or 10G transceivers, to create 10 Gbps high-speed uplinks to servers or service provider, corporate, or campus networks, reducing bottlenecks and increasing the performance of the access
network.
Continuous Availability
The IEEE 802.1w Rapid Spanning Tree Protocol provides a loop-free network and redundant links to the core network with rapid convergence, to ensure faster recovery from failed links, enhancing overall network stability and reliability. The IEEE 802.1s Multiple Spanning Tree Protocol runs STP per VLAN base, providing Layer 2 load sharing on redundant links up to 64 instances. The ECS4530 Series supports IEEE 802.3ad Link Aggregation Control Protocol (LACP). It increases bandwidth by automatically aggregating several physical links together as a logical trunk and offers load balancing and fault tolerance for uplink connections.
The ECS4530 Series supports G.8032 Ethernet Ring Protection Switching with the ability for the network to detect and recover from incidents without impacting users, meeting the most demanding quality and availability requirements. Rapid recovery time when problems do occur is as low as 50ms.
Enhanced Security
Port security limits the total number of devices from using a switch port and protects against MAC flooding attacks.
IEEE 802.1X port-based or MAC-based access control ensures all users are authorized before being granted access to the network. When a user is authenticated, the VLAN, QoS and security policy are automatically applied the port where the user is connected, otherwise the port is grouped in a guest VLAN with limited access. DHCP snooping allows a switch to protect a network from rogue DHCP servers that offer invalid IP addresses. IP Source Guard prevents people from using IP addresses that were not assigned to them.
Access Control Lists (ACLs) can be used to restrict access to sensitive network resources by denying packets based on source and destination MAC addresses, IP addresses, or TCP/UDP ports. ACLs are hardware supported, so switching performance is not compromised. Private VLANs (traffic segmentation per port) isolate edge ports to ensure user privacy.
DAI (Dynamic ARP Inspection) is a security feature that validates Address Resolution Protocol (ARP) packets in a network. DAI allows a network administrator to intercept, log, and discard ARP packets with invalid MAC-to-IP address bindings.
Secure Shell (SSH) and Secure Sockets Layer (SSL/HTTPS) encrypt Telnet and web access to the switch, providing secure network management.
The ECS4530 Series also supports both RADIUS and TACACS+ authentication methods to secure your network.
Comprehensive QoS
The ECS4530 Series offers advanced QoS for marking, classification, and scheduling to deliver best-in-class performance for data, voice, and video traffic at wire speed. Eight egress queues per port enable differentiated management of up to eight traffic types through the switch.
Traffic is prioritized according to 802.1p and DSCP to provide optimal performance for real-time applications. Weighted Round Robin (WRR) and strict priority ensure differential prioritization of packet flows and avoid congestion of ingress and egress queues.
Asymmetric bidirectional rate-limiting, per port or per traffic class, preserves network bandwidth and allows maximum control of
network resources.
The ECS4530 Series supports Three Color Marker and Policing Single rate: Committed Information Rate (CIR) Two rate: CIR + Peak Information Rate (PIR) Traffic Policing: The switch drops or remarks the priority tags of packets when they exceed the burst size.
Robust Multicast Control
IGMP snooping prevents the flooding of multicast traffic by dynamically configuring switch ports so that multicast traffic is forwarded to only those ports associated with an IP multicast receiver. IGMP increases the performance of networks by reducing multicast traffic flooding.
IGMP groups allow you to create customer packages for IP-TV channels, making switch configuration easy. IGMP Filtering prevents subscribers seeing unsubscribed IP-TV channels. And, IGMP Throttling allows you to set how many IP-TV channels a subscriber can receive simultaneously.
Multicast VLAN Registration
Multicast VLANs are shared in the network, while subscribers remain in separate VLANs. This increases network security and saves bandwidth on core links. Multicast streams do not have to be routed in core L3 switches, which saves CPU power.
Multicast VLAN Registration (MVR) is designed for applications such as Media-on-Demand that send multicast traffic across an Ethernet network.
IPv6 Support
The switch supports a number of IPv6 features, including IPv6 Management, DCHPv6 Snooping with Option 37, IPv6 Source Guide.
Superior Management
An industry-standard command-line interface (CLI), accessed through the console port or Telnet, provides a familiar user interface and command set for users to manage the switch.
An embedded user-friendly web interface helps users to quickly and simply configure switches.
The ECS4530 Series supports SNMPv1,2c,3 and four-group RMON. The switch provides a complete private MIB for the configuration of
most functions via the SNMP protocol.
Administrators can backup and restore firmware and configuration files via TFTP or FTP. The switch also provides the configuration of auto-provision for ease of use in large deployments.
AAA (Authentication, Authorization and Accounting) via RADIUS, TACACS+, enables centralized control of the switch. You can also authorize access rights per user and account for all actions performed by administrators.
Virtual Private Networks
The ECS4530 Series supports Layer 2 VPNs by using Q-in-Q functions, where an 802.1Q tag from a customer VLAN (called CE-VLAN ID) is encapsulated in a second 802.1Q tag from a service-provider network (called an SP-VLAN ID). The switch supports rewriting the VLAN tag of egress traffic when the ingress traffic is tagged.
The switch also supports Layer 2 Protocol Tunneling for STP, LACP, LLDP, CDP, VTP, PVST+, with Cisco-proprietary multicast address (01-00-0c-cd-cd-d0) replacement.
Multiple Parts Available & Ready to Ship with Lifetime Warranty
See Part List Below for a Sampling of Our Inventory
Don’t see what you’re looking for? Our Inventory is always changing, please contact us for current stock.
| Manufacturer | Part # | Description | Quantity |
| Edgecore | ECS4530-54CSFP | L2+/L3 Lite Gigabit Ethernet CSFP Switch with 4x10G and 2x20G Uplinks | Contact for Current Inventory |
| Edgecore | ECS4530-54CSFP-DC-I | L2+/L3 Lite Gigabit Ethernet CSFP Switch with 4x10G and 2x 20G Uplinks | Contact for Current Inventory |
