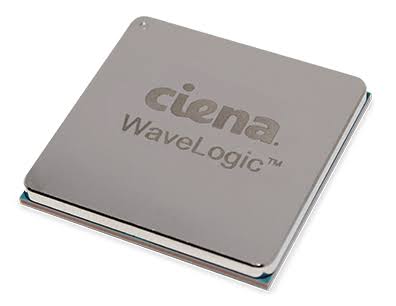

CIENA WaveLogic MOTR Modules
NTK540BD WL5e (WaveLogic 5 Extreme) | NTK538DR WLAi (WaveLogic Ai)
Circuit Packs Designed for the Ciena 6500 Packet-Optical Platform
Associated Optics Also Available:
160-9401-900 | 160-9402-900
REDUCING LEADTIMES
COST SAVINGS
LIFETIME WARRANTY
SUSTAINABLE SOLUTIONS
Ciena NTK540BD
WaveLogic 5 Extreme MOTR Module (WL5e)
The Ciena NTK540BD (HECI: WOWUBGREAA) is a WaveLogic 5 Extreme (WL5e) Premium MOTR (Muxponder Optical Transponder) circuit pack designed for the Ciena 6500 Packet-Optical Platform. It is primarily used by service providers to aggregate and transport massive amounts of high-speed data across metro, regional, and long-haul networks. The WL5e is a single carrier, coherent transceiver and service channel interface capable of transmitting and receiving up to an industry-leading 800 Gb/s of client payload on a single wavelength. Advanced coherent DSP technology, combined with state-of-the-art, high-bandwidth electro-optics, enables highly compact and flexible 200 Gb/s to 800 Gb/s coherent transmission to maximize capacity across any network path, while dramatically reducing footprint, power, and cost/bit.

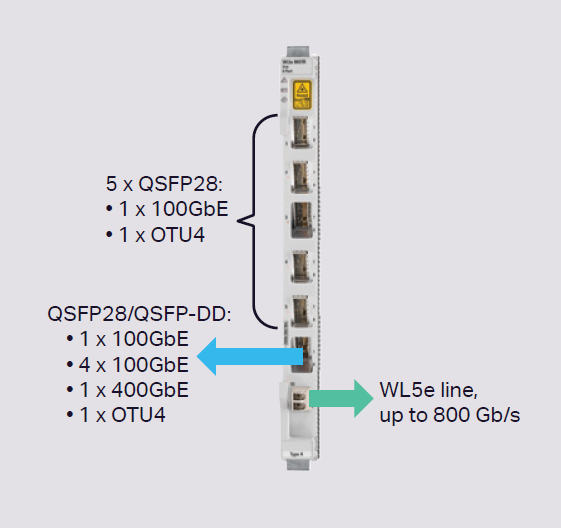

The WaveLogic 5 Extreme Muxponder interface combines six client ports (5 QSFP28 + 1 QSFP28/DD) and one programmable 200-800 Gb/s coherent DWDM line interface in a single-slot form factor, doubling the amount of capacity that can be supported in a 6500 shelf while reducing footprint and power by at least 50 percent. With WL5e MOTR supported in all 6500 D-Series and S-Series shelves, network providers can mine their existing 6500 installed base to achieve greater capacity scale and improved footprint, power, and cost efficiencies.
Features

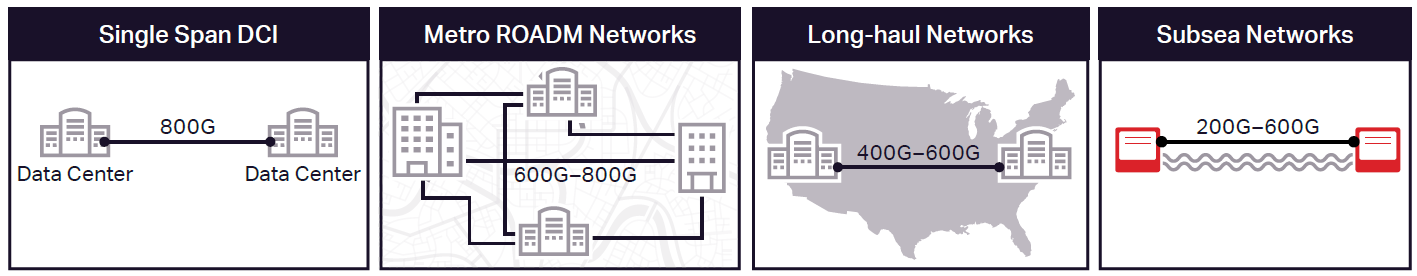

- Single-carrier 200-800 Gb/s coherent transmission to maximize capacity across any distance
- Compact single-slot form doubles capacity while reducing footprint and power by 50 percent in existing 6500 systems
- Versatile client interface support:
– 100GbE – 400GbE – OTU4 - Enables ubiquitous 400GbE connectivity across any distance
- Offers frequency tunability in the C- or L-Band to maximize fiber capacity

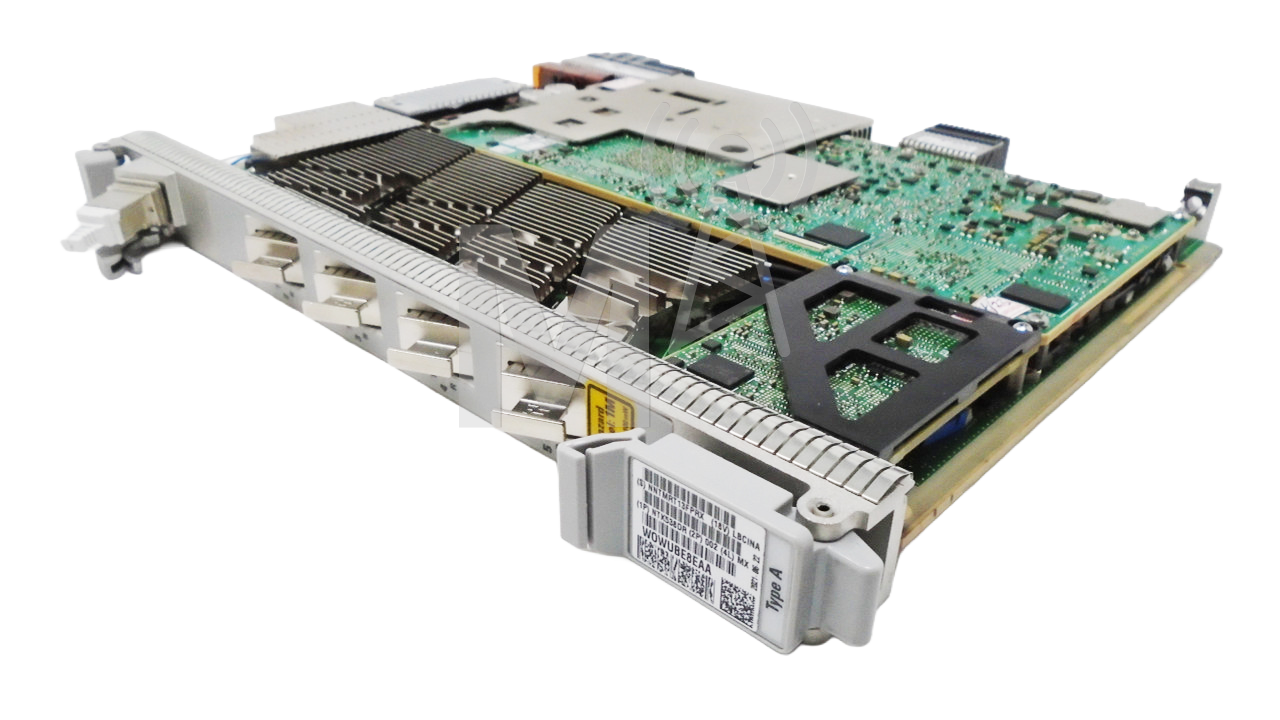

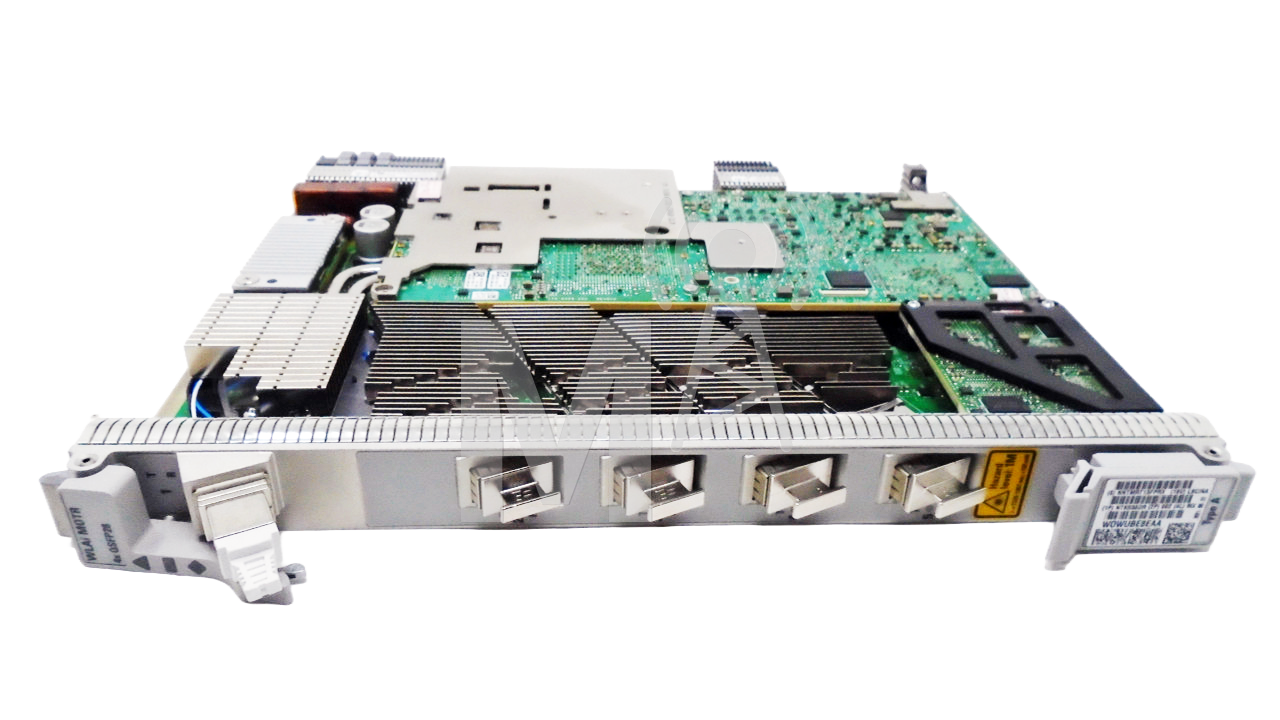

Ciena NTK538DR
WaveLogic Ai MOTR Module (WLAi)
The Ciena NTK538DR (HECI: WOWUBE8EAA) is optimized for best-in-class 100G service density and low power consumption. Ciena’s WaveLogic Ai MOTRs are optical transponder and service channel interfaces that enable a more scalable and programmable infrastructure. The Ciena WaveLogic Ai (WLAi) Multi-Output Transport Regenerator (MOTR) circuit pack designed for the Ciena 6500 Packet-Optical Platform. This module facilitates high-density 100G Ethernet services over coherent Dense Wavelength Division Multiplexing (DWDM) networks.

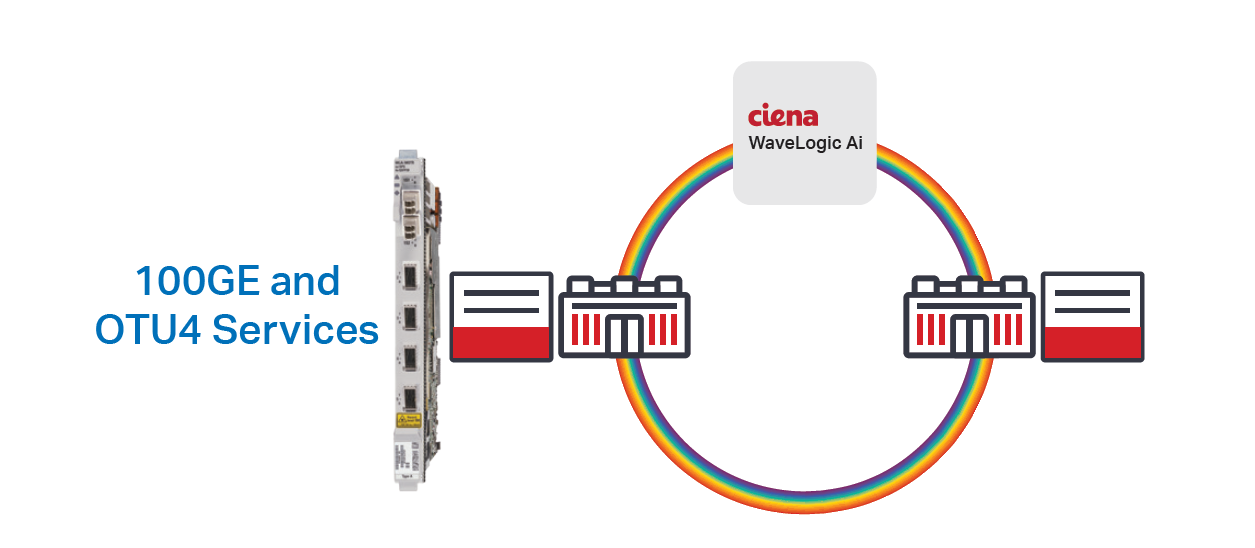

Ciena’s WaveLogic Ai (WLAi) MOTR combines four 100G QSFP28 clients and one programmable 400G coherent line interface in a single-slot form factor. With its pluggable QSFP28 client ports, operators can accommodate high-speed 100GE services or OTU4 connections with an efficient, pay-as you-grow operational model. One variant of the module includes an Optical Protection Switch (OPS) port directly on the card for integrated optical layer protection without the need to deploy additional hardware. WLAi MOTR operates flexibly in any of the existing 6500 D-Series and S-Series shelf configurations, from the compact 6500-D2 (2RU height) to the half-rack 6500-S32 configuration, so network providers can select the appropriate form factor to match specific capacity and power/space requirements.
Features
- Addresses all application requirements with a single module that leverages a pay as- you-grow operating model

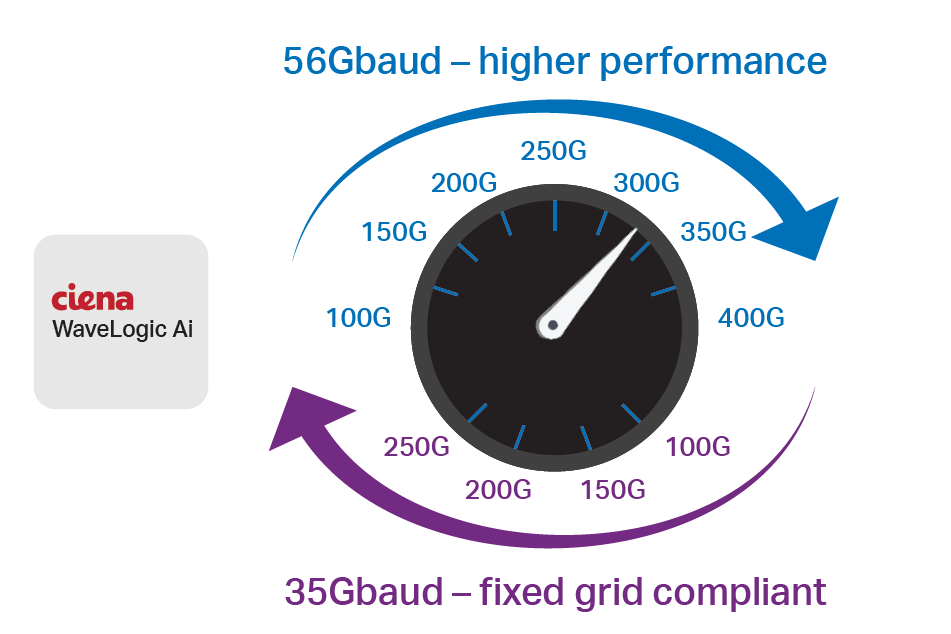

- Maximizes channel capacity for all applications, with tunability from 100G to 400G in 50G steps
- Increases service availability with a variant that integrates an Optical Protection Switch on the card
- Offers unprecedented, real-time optical networking performance data with the programmability required to make networks more adaptable
Associated Optics Also Available
160-9401-900 | 160-9402-900
Multiple Parts Available & Ready to Ship with Lifetime Warranty
See Part List Below for a Sampling of Our Inventory
Don’t see what you’re looking for? Our Inventory is always changing, please contact us for current stock.
| Manufacturer | Part Number | HECI/ CLEI | Description | QTY |
| Ciena | NTK540BD | WOWUBGREAA | WL5E MOTR PREMIUM 6 PORT (1X QSFP-DD/5X QSFP28) CIRCUIT PACK | Contact for Currtent Inventory |
| Ciena | NTK538DR | WOWUBE8EAA | WLAI MOTR 4X QSFP28 (100G Ethernet each) CIRCUIT PACK | Contact for Currtent Inventory |
| Ciena | 160-9401-900 | 100GBASE-LR4 QSFP28 optical transceiver module | Contact for Currtent Inventory | |

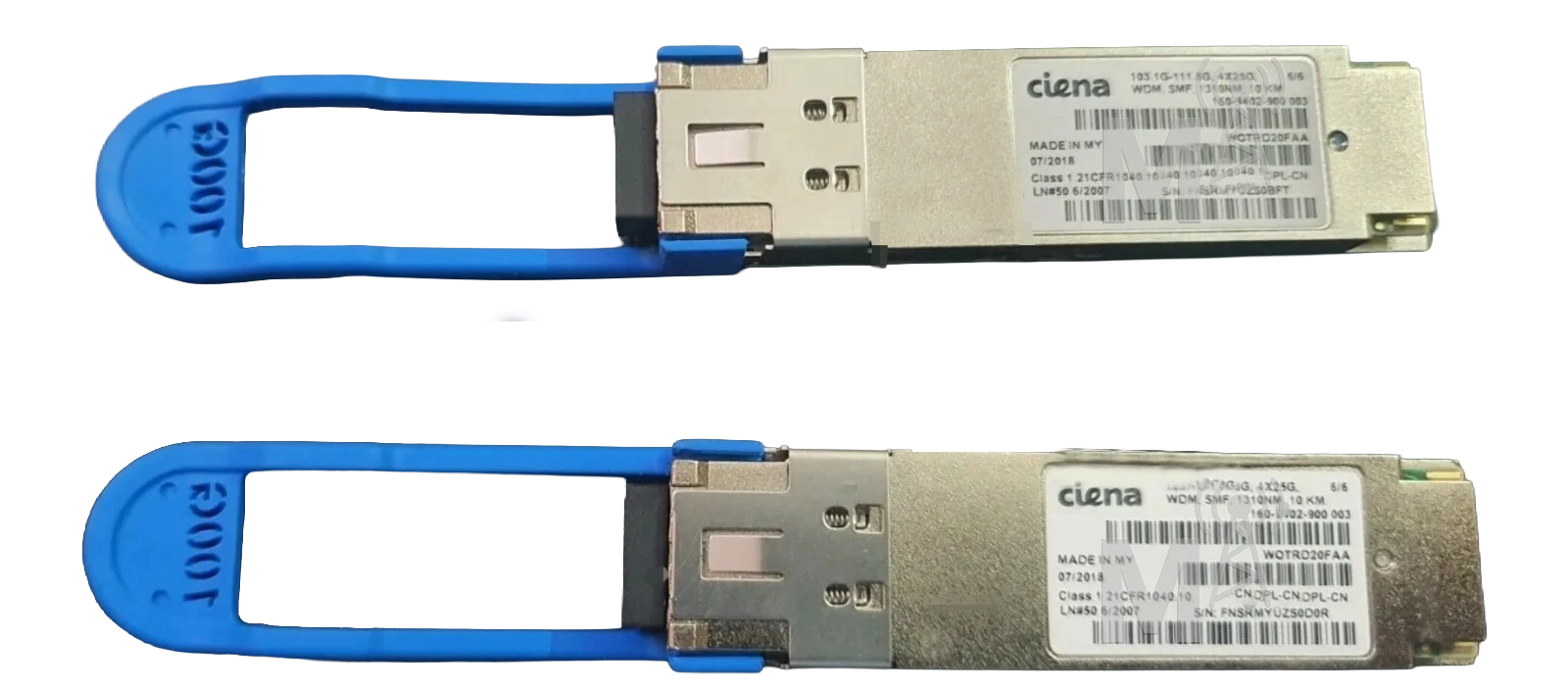

| Ciena | 160-9402-900 | hot-pluggable, multi-rate QSFP28 optical transceiver | Contact for Currtent Inventory |
