EKINOPS360 SYSTEM OVERVIEW
WDM Transport Solutions for Optical Networking Applications from Network Edge to Carrier Core

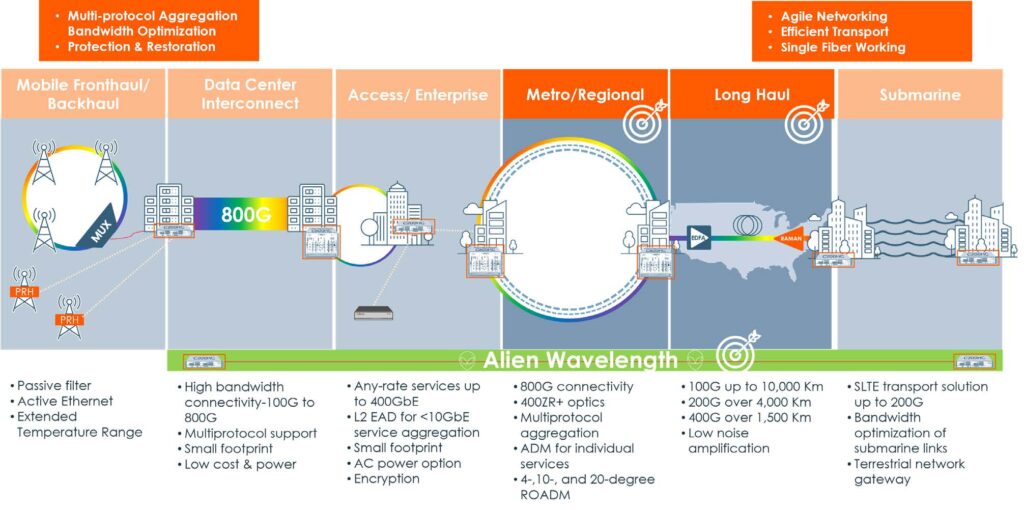

Ekinops360 consists of Ekinops high-capacity WDM transport managed through Celestis NMS, Ekinops advanced network management system. The Ekinops360 product line delivers active and passive DWDM and CWDM solutions for all transport applications from short reach enterprise, access and data center interconnection (DCI) to metro, regional long haul, ultra-long haul and even submarine distances with line rates from 1G to 800G and beyond. It can also be used for mobile backhaul and fronthaul applications in 3G, 4G and 5G radio access networks.

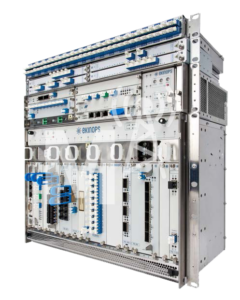

Ekinops360 Dynamic Multireach Transport platform
The Ekinops360 Dynamic Multireach Transport platform is a highly versatile and efficient optical transport system that delivers multirate, multiprotocol and multireach capability in a single chassis. Deployed for over a decade in networks across the globe, the Ekinops360 has been the vehicle enabling the migration first to 10G, then to 100G and 200G and now to 800G. Used by service providers—including wireless providers, cable operators, research and education institutions and enterprises alike, it is deployed in every transport application possible from access to ultra-long haul and even submarine connectivity. It can be deployed in outdoor cabinets or other unconditioned spaces at cell towers or in remote amplifier huts. As a single platform using common hardware, software and management, the Ekinops360 provides a complete end-to-end solution that is simple to deploy, operate and manage.
With its “evergreen” design, it can easily transition between technology eras—10G, 100G, 800G, etc.—and even support multiple eras at the same time providing the most efficient method for accommodating higher line rates and new technologies. With its modular architecture, an Ekinops360 chassis can be configured and reconfigured to match the service profile as needed and opportunity arises. Unlimited by fixed backplane speed, the Ekinops360 platform has enabled service providers to scale from 800 Gbps to over 38 Tbps without having to light another fiber pair or replace a single chassis.
Consisting of four rack mountable chassis types in 7 rack unit (RU) and 2RU form factors each 300mm deep and NEBS and ETSI compliant, the Ekinops360 platform meets the strictest telco operational and safety requirements for deployment in any network. Extended temperature range operation from -40°C to +65°C allows deployment in the harshest conditions (requires ETR-specific modules including transponder, amplifier, management card and fan unit).

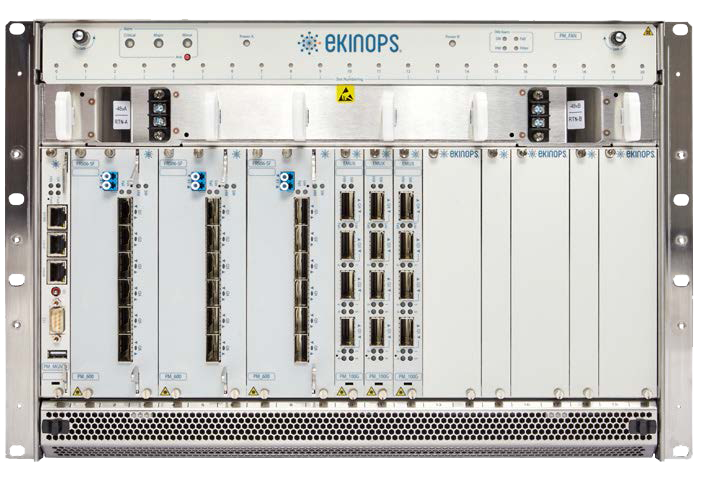

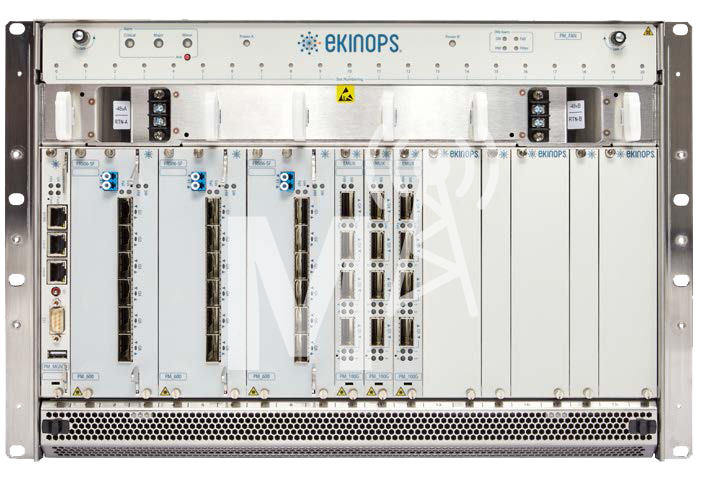

C600HC

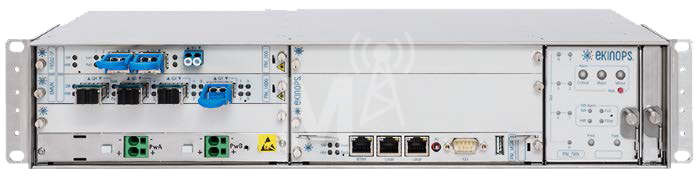

C200HC
KEY FEATURES & BENEFITS
- Modular architecture eases scalability
- Any card-any slot approach simplifies network designs
- Supports service modules and photonic modules in the same chassis to reduce footprint requirements
- Line rate agnostic from 1G to 800G—and beyond—prevents system obsolescence
- Modules compatible with all chassis for complete platform interoperability
- Extended Temperature Range (ETR) capability for harsh environments
- 300mm depth meets telco standard
- NEBS and ETSI compliant for central office deployment
- Front-to-back airflow for data center deployment (C700HC)
Multiple Parts Available & Ready to Ship with Lifetime Warranty
See Part List Below for a Sampling of Our Inventory
Don’t see what you’re looking for? Our Inventory is always changing, please contact us for current stock.
| Manufacturer | Part # | Description | Quantity |
| EKINOPS | C200 | C200 EKINOPS PM SERIES C200 SHELF | Contact For Current Inventory |
| EKINOPS | C200HC | 40x10G/8x40G/12x100G/2x400G | Contact For Current Inventory |
| EKINOPS | C600 | C600 EKINOPS PM SERIES C600 SHELF | Contact For Current Inventory |
| EKINOPS | C600HC | 120x10G/24x40G/20x100G/6x400G | Contact For Current Inventory |
| EKINOPS | PM_200FRS02 | Pluggable 200G FlexRate 1 slot Transponder/Muxponder | Contact For Current Inventory |
| EKINOPS | PM_400FRS04-SF | Pluggable 400G FlexRate 3 slots Transponder/Muxponder | Contact For Current Inventory |
| EKINOPS | PM_AF | Amplifier module for signal boosting in optical transport | Contact For Current Inventory |
| EKINOPS | PM_C1001HC | High-capacity 10Gbps transponder with advanced FEC | Contact For Current Inventory |
| EKINOPS | PM_FAN_C200HC | Fan unit for C200HC | Contact For Current Inventory |
| EKINOPS | PM_FAN_C600HC | Fan unit for C600HC | Contact For Current Inventory |
| EKINOPS | PM_MGNT4 | Management module | Contact For Current Inventory |
| EKINOPS | PM_MGNT4-2 | Redundant management module | Contact For Current Inventory |
| EKINOPS | PM_MGNT4-ETR | Extended temperature Management module | Contact For Current Inventory |
| EKINOPS | PM_O6006MP | 6-port multiprotocol OTN transponder | Contact For Current Inventory |
| EKINOPS | PM_OABP-HCS-BR | High-capacity optical booster for broadcast ring | Contact For Current Inventory |
| EKINOPS | PM_OAC20 | Pluggable C-band Amplifier with Extended Temperature Range Operation | Contact For Current Inventory |
| EKINOPS | PM_OAIL-HCS | Optical add-insert module | Contact For Current Inventory |
| EKINOPS | PM_OAIL-HCS2 | High Capacity Next Generation Inline Amplifier | Contact For Current Inventory |
| EKINOPS | PM_OC2-BR | OC-2 bypass module | Contact For Current Inventory |
| EKINOPS | PM_OC2-RB | OC-2 ring-backbone | Contact For Current Inventory |
| EKINOPS | PM_ROADM-FLEX-H10M | Flexgrid Ten-Degree Pluggable ROADM | Contact For Current Inventory |
| EKINOPS | PM_ROADM-FLEX-H4M | Flexgrid Four-Degree Pluggable ROADM | Contact For Current Inventory |
| EKINOPS | PM_ROADM-FLEX-H4M-SG | Flexible 4-degree ROADM module | Contact For Current Inventory |
| EKINOPS | PM_VOA | 8-port Pluggable Variable Optical Attenuator | Contact For Current Inventory |
| EKINOPS | PMAPC | Power management module | Contact For Current Inventory |
| EKINOPS | PMC1001HC | High-capacity power & transponder module | Contact For Current Inventory |
| EKINOPS | PMOABP-HC | High-capacity optical booster amplifier | Contact For Current Inventory |
| EKINOPS | RM_OAC17-WB | Open White Box Optical Line Amplifier for C-band | Contact For Current Inventory |
| EKINOPS | TRFAN | Tray-mounted fan unit | Contact For Current Inventory |
| EKINOPS | Whitebox | Passive optical coupling or signal-through module | Contact For Current Inventory |
